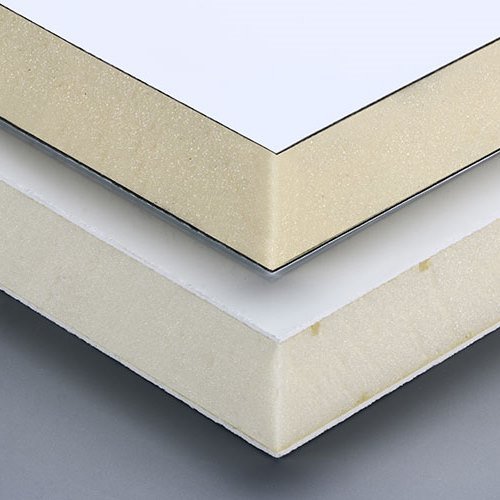

Polyurethane PU Insulation Panel

1. Product Overview

Polyurethane (PU) Insulation Panel is a high-performance rigid insulation system manufactured with a polyurethane foam core designed to deliver superior thermal insulation and energy efficiency. It is widely used in cold storage facilities, refrigerated warehouses, industrial buildings, commercial structures, and temperature-controlled environments. Its excellent thermal resistance, lightweight construction, and dimensional stability help reduce heat transfer, operating costs, and installation time. As energy efficiency and controlled-temperature infrastructure become increasingly important, PU insulation panels remain a strategic material for modern construction and industrial facility development.

2. Key Specifications & Technical Characteristics

• Core Material: Rigid polyurethane (PU/PIR-type) insulation foam
• Chemical Composition: Polyurethane foam core with protective metal or coated sheet facings
• Grade: Industrial and commercial insulation grade; specifications customizable to project requirements
• Panel Form: Rigid prefabricated sandwich insulation panels
• Surface: Smooth, coated, or profiled metal-faced finish
• Color: Typically white, grey, or customized RAL colors
• Thermal Conductivity: Typically approximately 0.020–0.025 W/m·K, depending on formulation and density
• Core Density: Commonly approximately 35–45 kg/m³, subject to specification
• Panel Thickness: Common options include 30–200 mm; customized thicknesses available
• Fire Performance: Available in formulations meeting applicable fire-performance requirements, subject to specification
• Dimensional Stability: High resistance to shrinkage and deformation under normal operating conditions
• Packaging: Protective film and secure export packaging suitable for containerized international shipment
• Customization: Panel dimensions, thickness, facing materials, joints, profiles, and colors can be produced according to project requirements
• Shelf Life: Store in a dry, protected environment and follow manufacturer-recommended storage conditions

3. Core Industrial Applications

• Cold Storage & Refrigeration: Insulation for cold rooms, freezer facilities, refrigerated warehouses, and temperature-controlled processing areas.
• Food & Beverage: Used in food processing plants, distribution centers, hygienic rooms, and temperature-sensitive storage facilities.
• Industrial Buildings: Provides thermal insulation for factories, warehouses, workshops, and production facilities.
• Commercial Construction: Suitable for commercial buildings, retail facilities, logistics centers, and other energy-conscious structures.
• Agricultural Infrastructure: Used in controlled-temperature storage, agricultural processing facilities, and specialized storage buildings.
• Modular & Prefabricated Construction: Lightweight panels enable rapid assembly while providing effective thermal separation.

PU insulation panels offer high insulation performance at relatively low thickness compared with many conventional insulation materials, helping maximize usable interior space while reducing heating and cooling energy demand. Their prefabricated design also supports faster installation, lower structural loading, and improved project efficiency.

4. Competitive Advantages

• Consistent Quality: Engineered for reliable thermal performance, dimensional stability, and long-term service.
• High Thermal Efficiency: Low thermal conductivity helps minimize heat transfer and improve building energy performance.
• Supply Reliability: Suitable for bulk procurement and international B2B supply programs with project-based specifications.
• Logistics Capability: Protective export packaging and container-ready preparation support efficient international transportation.
• Price Competitiveness: Lightweight construction and high insulation efficiency can reduce material, transportation, installation, and long-term energy costs.
• Durability: Metal-faced construction provides mechanical protection and resistance to demanding industrial environments.
• Sustainability Benefits: Improved building insulation can reduce energy consumption and associated operational emissions over the service life of a facility.
• Technical Documentation: Product specifications, technical data, test documentation, and compliance information can be provided according to buyer and project requirements.
• Strategic Sourcing Value: Customizable specifications, scalable bulk supply, and efficient installation make PU insulation panels a practical choice for large-scale construction and industrial insulation projects.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT
• Loading Capacity: Approximately 20–25 MT per 40-foot container, depending on panel dimensions, thickness, packaging, and applicable container weight restrictions.
