12¼” TCI IADC 537

1. Product Overview

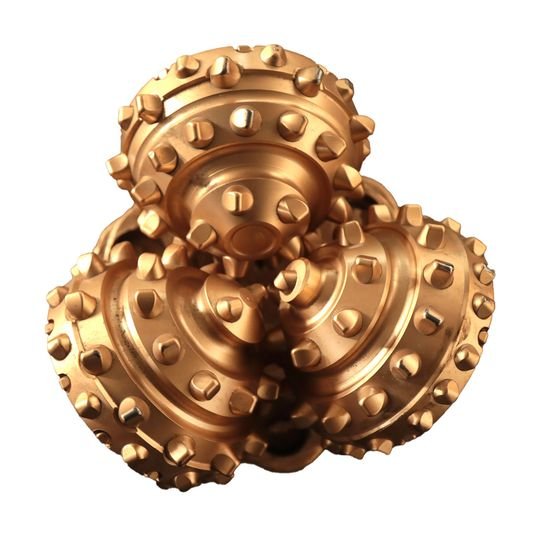

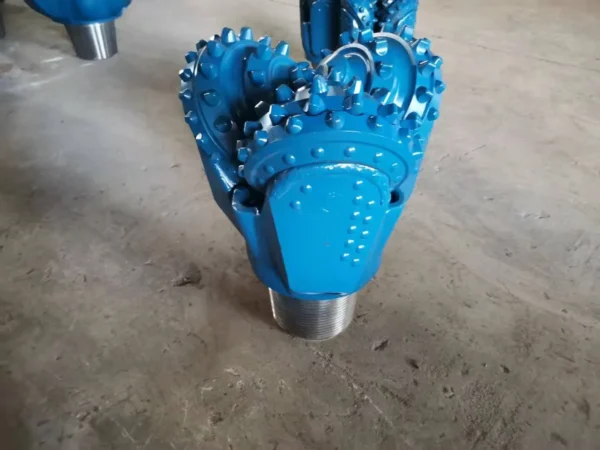

The 12¼” TCI IADC 537 is a tungsten carbide insert (TCI) tricone roller-cone drill bit engineered for efficient drilling in soft-to-medium and medium-hard formations with abrasive interlayers. Its robust cutting structure, reinforced gauge protection, and sealed bearing configuration support reliable penetration, durability, and controlled drilling performance. The 12¼” (311.1 mm) size is widely suited to oil & gas, water-well, geothermal, mining, and foundation drilling applications. Its balance of penetration efficiency, wear resistance, and operating reliability makes it a strategic choice for demanding drilling programs.

2. Key Specifications & Technical Characteristics

• Product Type: TCI Tricone Roller-Cone Drill Bit
• Bit Size: 12¼” (311.1 mm)
• IADC Classification: 537
• Cutting Structure: Tungsten carbide inserts designed for enhanced wear resistance and rock-breaking efficiency
• Primary Material: High-strength alloy steel body with tungsten carbide cutting inserts
• Bearing: Sealed bearing configuration; journal-bearing and other bearing options may be available according to specification
• Gauge Protection: Gauge trimmers, gauge inserts, tungsten carbide protection, and hardfacing for improved gauge retention
• Typical Connection: 6⅝” API Regular Pin, subject to final configuration
• Nozzle Configuration: Commonly supplied with 3 nozzles, subject to manufacturer configuration
• Recommended Rotary Speed: Approximately 40–110 rpm, depending on formation and drilling conditions
• Typical WOB Range: Approximately 0.50–1.05 kN/mm, subject to formation and operating conditions
• Target Formations: Hard shale, anhydrite, soft limestone, sandstone, dolomite, and formations containing hard or abrasive interlayers
• Surface Finish/Color: Manufacturer-dependent
• Packaging: Export-grade wooden case/pallet packaging suitable for international transportation
• Documentation: Technical specifications, inspection documentation, and certification available according to order requirements

3. Core Industrial Applications

• Oil & Gas Drilling: Effective for drilling intermediate formations and sections containing shale, limestone, sandstone, and abrasive streaks.
• Water-Well Drilling: Suitable for high-performance rotary drilling where dependable penetration and gauge control are required.
• Geothermal Drilling: Designed to handle variable formations and moderate abrasive conditions encountered in geothermal well construction.
• Mining & Quarrying: Applicable to drilling operations requiring durable carbide cutting structures and reliable rock penetration.
• Foundation & Construction Drilling: Supports efficient borehole development in mixed and moderately hard geological formations.

The 537 classification provides a practical balance between cutting efficiency and durability, while tungsten carbide inserts help maintain cutting performance under abrasive drilling conditions. Reinforced gauge protection also helps reduce premature gauge wear and maintain hole diameter.

4. Competitive Advantages

• Quality Consistency: Precision-manufactured cutting structure and controlled assembly support dependable drilling performance.
• Enhanced Wear Resistance: Tungsten carbide inserts and reinforced gauge protection improve resistance to abrasive formation wear.
• Bearing Reliability: Sealed bearing designs help protect internal bearing components from drilling-fluid and formation contamination.
• Operational Efficiency: Optimized cutting structures provide an effective balance of penetration rate, durability, and drilling stability.
• Supply Reliability: Suitable for bulk procurement programs and international industrial supply requirements.
• Logistics Capability: Export-oriented packaging helps protect the bit during handling and international transportation.
• Cost Competitiveness: Durable construction can help reduce bit-change frequency and associated downtime when correctly matched to formation conditions.
• Technical Documentation: Product specifications, inspection records, and applicable certification can be supplied according to commercial requirements.
• Strategic Sourcing Value: A robust option for drilling contractors and procurement teams seeking dependable performance across demanding medium-formation drilling applications.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: To be confirmed according to final packaging configuration, container type, and shipment requirements.
